Quick Details

  • Condition: New
  • Type: Hollow Block Making Machine
  • Brick Raw Material: Cement
  • Processing: Brick Molding Machine
  • Method: Vacuum Extruder
  • Automatic: Yes
  • Capacity: 4000-60000 Pieces/day
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: CGK
  • Model Number: QT4-25D
  • Voltage: 220V/380V
  • Power: 16KW
  • Dimension(L*W*H): 3600*1700*2560mm
  • Certification: ISO9001
  • Warranty: 2 Years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Raw material: Sand
  • Molding cycle: 20s
  • Block Type: Hollow Concrete Brick Machine
  • Product Name: CGK4-25 Hollow Block Making Machine
  • Model: CGK4

Packaging & Delivery

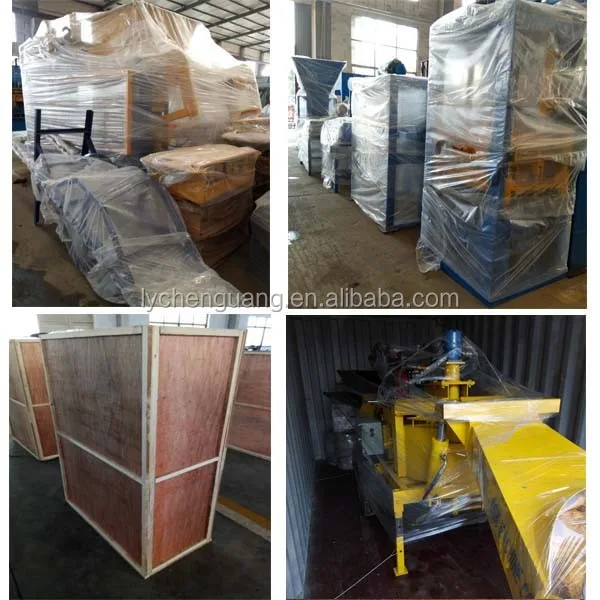

Packaging Details Wooden package
Product Description

4-25D gypsum block making machine

Product Application

4-25D gypsum block making machine is a new model developed by our company with hydraulic station and Control Cabinet.For this machine,all the advantages of medium and small sized block machines of similar types have be absorbed.It is cheap in price,easy in operating,and durable in use. This machine is automatic in material feeding,martial distributing,material scraping and carriage plate placing.This machine is equipped with a power:driven decoupling device and a specialized stacker,which can stack 3—5 layers of the blocks.For this machine,there is the specialized carriage cart for block discharging,with which the automatic production with small sized block machine,under the conditions to reduce the labor intensity of workers,can be achieved,and the output of the blocks can be increased substantially.So,it is an ideal alternative of the similar machines.This machine is suitable for the small and medium sized block factories for mass production

SPECIFICATIONS FOR 4-25D gypsum block making machine

Forming pieces
390*190*190 4pcs/mould hollow brick
240*115*90 12pcs/mould cellular brick
240*115*53 26pcs/mould standard brick
Total Weight
4.2T
Forming Cycle
25-30s
Size of host Machine
5000*1650*2200mm
Size of Carriage Plate
850*550*30mm
Daily production capacity for hollow bricks
4000pcs
Daily production capacity for standard bricks
28000pcs
Daily production capacity for cellular bricks
10000pcs
4-25D gypsum block making machine





Main Features

1) Technology advanced:German advanced technology.
2) High quality:the whole machine is adopted high quality steel,and precision welding,the hydraulic system use high-quality components,so it have a longer life and less fault during work.
3) Low investment,high efficiency:this machine have several function features,such as low price,reliable performance,easy to operated,stable,more efficient,high output,low power consumption.
4) Produce high quality bricks:the brick it produced have high density,high strength,accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit .

Detailed Images




Machine Parts

Name: 4-25D gypsum block making machine                                                            Brand: CGK

Original:China

CGK4-25D is one type of full automatic block making machine of our factory. Very easy to installation and operation.

Machine Parts

Name: JQ 350 Mixer
Brand:CGK                                                                  Original:China
JQ350 concrete mixer can can work independently, also can be composed the concrete mixing plant with other matched equipment., and it can be Applicable to large, medium and small precast concrete products factory and roads, railways, bridges, water conservancy, civil construction project, and it can mix dry and hard concrete, plastic concrete, light aggregate concrete and all kind of mortar, it is one kind of high efficiency, widely used construction machinery. It owns reasonable design ,and its mechanical accessories used industry standard parts, and its maintenance is much convenient.

Machine Parts

Name: Conveyor belt

Brand: CGK
Original: China

3m/4m/5m/6m/7m belts, carry the material to the feeder.

Main Features

Name:Auto stacker
Brand:CGK
Original:China
Automatic Brick Collecting stacker machine System can Collect and stack up produced concrete bricks.meanwhile,it can clean and stack up the pallets. Save 5-6 persons,improve production efficiency.
